Product Description
ElectRay eLite Flash Bootloader provides a secure and robust solution for in-vehicle ECU firmware updates. Designed for OEM and Tier-1 requirements, it supports CAN and CAN-FD communication with UDS-based flashing, enabling reliable diagnostics and ECU reprogramming. The bootloader is fully configurable to align with OEM workflows and security mechanisms and is compatible with both AUTOSAR Classic and non-AUTOSAR environments, making it suitable for a wide range of automotive ECUs.
2+ Years, Zero Bugs: Engineering You Can Trust
Our automotive bootloader has delivered zero reported bugs since 2023 across deployed production programs, supporting reliable ECU firmware updates in real-world mobility environments. Designed for modern vehicles, it ensures safe and secure ECU reprogramming, robust flash memory integrity, and dependable diagnostics communication, enabling OEMs and Tier-1s to maintain reliable software updates and long-term vehicle performance throughout the mobility lifecycle.
Key Features
- Support for CAN and CAN-FD with UDS-based flashing
- Configurable architecture to align with OEM-specific workflows and security mechanisms
- Compatible with AUTOSAR Classic and non-AUTOSAR environments
- Optimized for small-footprint ECUs with configurable memory usage
- Reliable checksum validation and flash memory integrity management
Overview

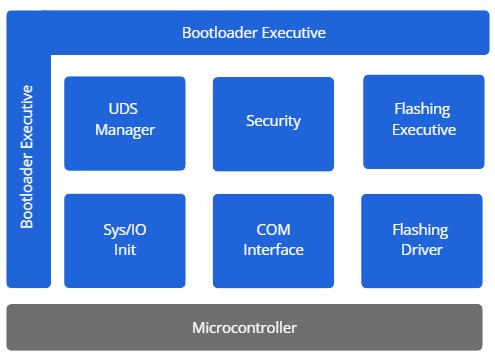

Package
- Bootloader Executive
- Flashing Executive
- UDS ISO 14229 OR J1939
- CAN/CAN-FD ISO 15785-2
- Security using Seed/Key based algorithm
- Flash Driver
- CAN/CAN-FD Driver
Specification
- Small Footprint
- Supports the CAN Classic and CAN-FD communication
- UDS & J1939 compliance bootloader
- Minimal UDS Diagnostic support
- Standalone and Independent of Application of ECU software
- ANSI C source code
Additional Details
Supported Platforms
- Infineon
- Renesas
- NXP
- Microchip
- ST Micro
- Texas Instruments
Post Sales Support and Services
- Bootloader Configuration to meet unique OEM requirements.
- Bootloader integration in ECU Software.
